Create a Backend Service

What is a Backend Service?

A Backend Service is a microservice application responsible for handling business logic, data management, and integration within the OneCX platform. It is typically generated using the OneCX App Generator and built on modern frameworks such as Quarkus. Within the OneCX ecosystem, a Backend Service acts as the backend layer that processes requests from UI Apps and other services. It exposes REST APIs, manages persistence, and implements domain-specific logic. A service can function independently or as part of a larger microservices architecture, communicating with other components to deliver complete business capabilities.

more details about SVC you can find in the link below: https://onecx.github.io/docs/documentation/current/docs-guides-quarkus/quarkus-svc.html

The backend created with the OneCX SVC Generator has just the basic structure. You will need to further develop and customize the application to meet your specific requirements and business logic.

Generate a Backend Service (SVC)

The OneCX SVC Generator creates a Quarkus-based backend service project following the standard OneCX service structure.
It generates the basic project setup, application configuration, Maven build configuration, Docker and Helm files, OpenAPI skeleton, and optional GitHub Actions workflow files.

The generator supports creating the initial service project structure first.
After that, entities can be added to the generated service project. Entity generation creates the basic persistence and API layers, including JPA entities, DAOs, services, REST controllers, mappers, tests, and Liquibase changelogs.

The creation of a new service project takes a while, as the generator sets up a complete Quarkus application with the required OneCX project structure and configuration.

Releases of generator: https://github.com/onecx/onecx-svc-generator/releases

Generate the SVC with following commands

Download the latest release of the generator from GitHub and save it as onecx-svc-generator.jar in your desired directory.

curl -L -o onecx-svc-generator.jar \
https://github.com/onecx/onecx-svc-generator/releases/download/v0.1.1/onecx-svc-generator.jar

Use generator with following command

java -jar onecx-svc-generator.jar create-svc \
  --name onecx-demo-svc \
  --group org.tkit.onecx \
  --package org.tkit.onecx.demo \
  --build true
Flag Description

--name

Specifies the generated service project name. The value is used as the name of the generated project directory inside --output-dir. It is also used for project-level names such as OpenAPI file names, application metadata, Helm-related project names and generated project structure. If --artifact-id is not provided, --name is used as the source value for the generated Maven artifactId.

--artifact-id

Specifies the Maven artifactId of the generated service project. If omitted, the artifact ID is derived from --name. This flag affects the generated Maven project configuration, but the generated project directory and OpenAPI file names remain based on --name.

--group

Specifies the Maven groupId of the generated service project. The value is used in the generated Maven project configuration and generator metadata.

--package

Specifies the base Java package name of the generated service. The value is used as the base package for generated application parts created from templates, such as controllers, DAOs, entities, mappers, services, exception mappers and tests.

--parent-version

Specifies the onecx-quarkus3-parent version used by the generated service project. If omitted, the generator defaults to the currently supported baseline version.

--output-dir

Specifies the parent output directory where the generated service project directory will be created. The generator creates a project folder inside this directory using the value of --name.

--build true

Builds the generated service project after generation by running Maven in the generated project directory. If you want to build it manually, you can omit this flag and run mvn clean package or mvn clean install inside the generated directory.

--liquibase-diff

Generates the Liquibase changelog by running the Maven db-diff profile and importing the generated diff result into the service changelog structure. If omitted, the generator creates Liquibase changelog files from its templates.

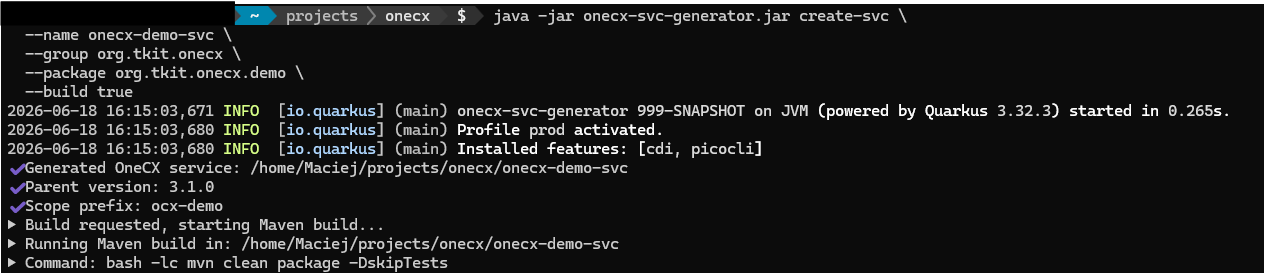

start generating with autobuild
Figure 1. Excerpt of the build start output

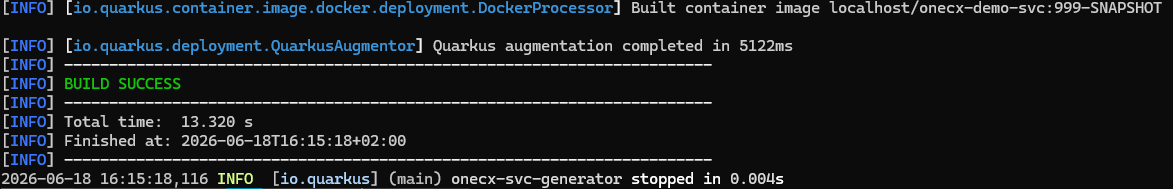

result generating with autobuild
Figure 2. Excerpt of the build result output

The generator creates a new directory with name from flag name and sets up the OneCX basic structure for dao, controller, api and service.
Please note that the product name from your command is not used as base of entity names, but it is used as base for some essential application parts as following: * onecx-<name>
Project name
Helm chart name for deployment and microservice registration in OneCX * org.tkit.onecx.<package>
Package name for the generated service

Next step may create a database schema and api components.
