Create a Backend for Frontend

What is a Backend for Frontend?: A Backend for Frontend (BFF) is a backend service tailored to a specific frontend application. It acts as an API layer between the frontend and backend services and adapts backend APIs to frontend requirements.

more details about BFF you can find in the link below: https://onecx.github.io/docs/documentation/current/docs-guides-quarkus/quarkus-bff.html

The BFF project created with the OneCX BFF Generator is the base of a functional Backend for Frontend application. You will need to further review, develop and customize the generated controllers, mappers and configuration to meet your specific API contracts, integration requirements and business logic.

Generate a Backend for Frontend (BFF)

The generator creates a Quarkus-based Backend for Frontend project from frontend and backend OpenAPI definitions.

The creation of a new BFF project takes a while, as the generator sets up a complete Maven project with application configuration, controller skeletons, mapper classes, OpenAPI integration, test scaffolding, Docker files, Helm chart files and GitHub Actions workflow files.

Releases of generator:

https://github.com/onecx/onecx-bff-generator/releases

Generate the BFF with following commands

Download the latest release of the generator from GitHub and save it as onecx-bff-generator.jar in your desired directory.

curl -L -o onecx-bff-generator.jar \
https://github.com/onecx/onecx-bff-generator/releases/download/<version>/onecx-bff-generator.jar

Use generator with following command:

java -jar onecx-bff-generator.jar create-bff \
  --name onecx-demo-bff \
  --group org.tkit.onecx \
  --package org.tkit.onecx.demo.bff \
  --frontend-api ./openapi/frontend.yaml \
  --backend-api ./openapi/backend.yaml \
  --autobuild

Flag Description

Flag	Description
`--autobuild`	Builds the generated BFF project after generation. If you want to build it manually, you can omit this flag and run `mvn clean package` in the generated directory.
`--name`	Specifies the generated BFF project name. If `--artifact-id` is not provided, this value is also used as the default Maven `artifactId`. The value is also used for project-level generator metadata.
`--group`	Specifies the Maven `groupId` of the generated BFF project. The value is also written to generator metadata.
`--package`	Specifies the base Java package of the generated BFF project. If omitted, the package is derived from `--group` and `--name`.
`--frontend-api`	Specifies the path or URL to the frontend OpenAPI specification. This API represents the contract exposed by the generated BFF.
`--backend-api`	Specifies the path or URL to the backend OpenAPI specification. This API represents the backend service consumed by the generated BFF.
`--artifact-id`	Specifies the Maven `artifactId` of the generated BFF project. If omitted, the artifact ID is derived from `--name`.
`--output-dir`	Specifies the output directory where the generated BFF project should be created. If omitted, the current directory is used.
`--parent-version`	Specifies a concrete `onecx-quarkus3-parent` version. If omitted, the generator resolves the latest available release.

--autobuild

Builds the generated BFF project after generation. If you want to build it manually, you can omit this flag and run mvn clean package in the generated directory.

--name

Specifies the generated BFF project name. If --artifact-id is not provided, this value is also used as the default Maven artifactId. The value is also used for project-level generator metadata.

--group

Specifies the Maven groupId of the generated BFF project. The value is also written to generator metadata.

--package

Specifies the base Java package of the generated BFF project. If omitted, the package is derived from --group and --name.

--frontend-api

Specifies the path or URL to the frontend OpenAPI specification. This API represents the contract exposed by the generated BFF.

--backend-api

Specifies the path or URL to the backend OpenAPI specification. This API represents the backend service consumed by the generated BFF.

--artifact-id

Specifies the Maven artifactId of the generated BFF project. If omitted, the artifact ID is derived from --name.

--output-dir

Specifies the output directory where the generated BFF project should be created. If omitted, the current directory is used.

--parent-version

Specifies a concrete onecx-quarkus3-parent version. If omitted, the generator resolves the latest available release.

Figure 1. Excerpt of the generation start output exemplary for demo BFF application

Figure 2. Excerpt of the generation start output exemplary for demo BFF application

Figure 3. Excerpt of the generation result output exemplary for demo BFF application

The generator creates a new directory with the name provided by the --name flag and sets up the OneCX basic BFF structure for controller, mapper, API integration and tests.

Please note that the project name from your command is used as base for some essential application parts as following:

onecx-demo-bff
Project name
Maven artifact ID, unless explicitly overridden
Helm chart name for deployment and microservice registration in OneCX
Application metadata
org.tkit.onecx.demo.bff
Package name for the generated BFF

Copy-Paste Example

The following example can be used in a typical local OneCX workspace. It assumes that the UI and SVC repositories are checked out below ~/projects/onecx.

export ONECX_HOME="${ONECX_HOME:-$HOME/projects/onecx}"

curl -L -o onecx-bff-generator.jar \
https://github.com/onecx/onecx-bff-generator/releases/download/<version>/onecx-bff-generator.jar

java -jar onecx-bff-generator.jar create-bff \
  --name onecx-demo-bff \
  --group org.tkit.onecx \
  --package org.tkit.onecx.demo.bff \
  --frontend-api "$ONECX_HOME/onecx-demo-ui/demo/src/assets/api/openapi-bff.yaml" \
  --backend-api "$ONECX_HOME/onecx-demo-svc/src/main/openapi/onecx-demo-svc-internal.yaml" \
  --output-dir "$ONECX_HOME" \
  --autobuild

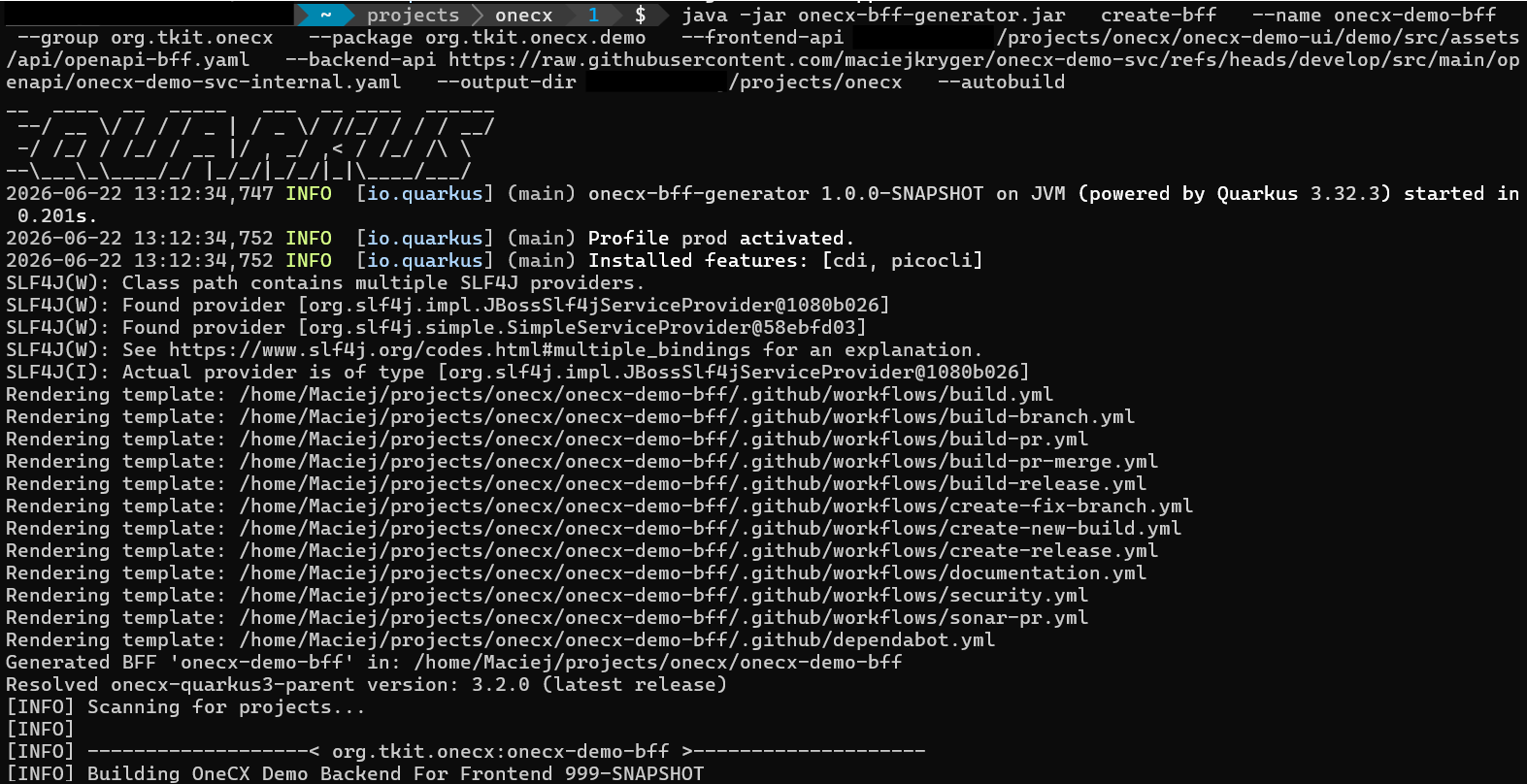

Figure 4. Excerpt of the copy-paste generation start output with autobuild

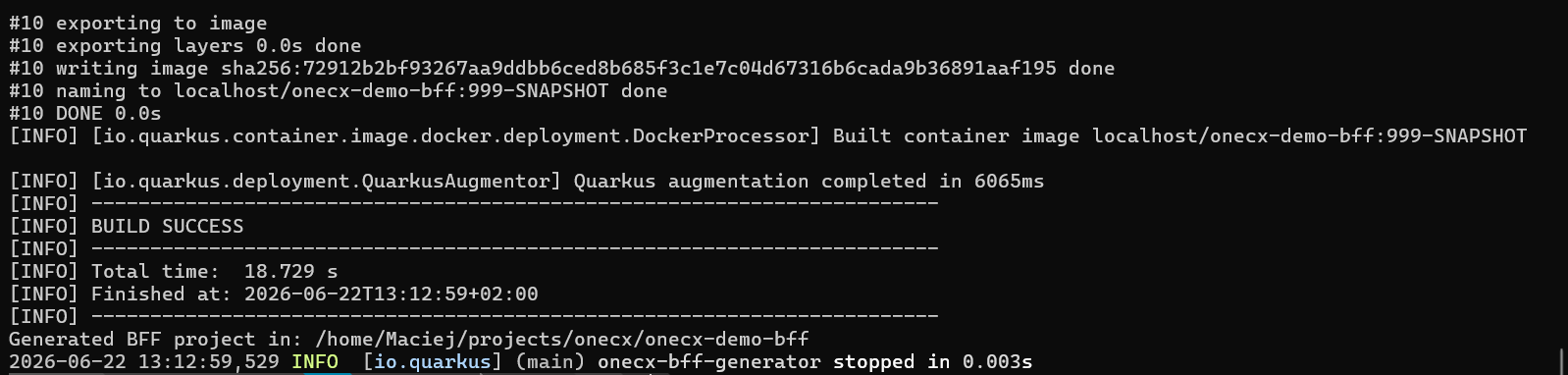

Figure 5. Excerpt of the copy-paste generation result output with autobuild

Local Development Example

If you build the generator locally, you can run it directly from the generated JAR.

cd ~/projects/onecx/onecx-bff-generator
mvn -DskipTests clean package -Dquarkus.package.type=uber-jar

export ONECX_HOME="${ONECX_HOME:-$HOME/projects/onecx}"

java -jar "$ONECX_HOME"/onecx-bff-generator/target/onecx-bff-generator-1.0.0-SNAPSHOT-runner.jar create-bff \
  --name onecx-demo-bff \
  --group org.tkit.onecx \
  --package org.tkit.onecx.demo.bff \
  --frontend-api "$ONECX_HOME"/onecx-demo-ui/demo/src/assets/api/openapi-bff.yaml \
  --backend-api https://raw.githubusercontent.com/maciejkryger/onecx-demo-svc/refs/heads/main/src/main/openapi/onecx-demo-svc-internal.yaml \
  --output-dir "$ONECX_HOME" \
  --autobuild

Figure 6. Excerpt of the local development generation start output with autobuild

Figure 7. Excerpt of the local development generation result output with autobuild

OpenAPI Input

The BFF generator requires two OpenAPI specifications:

Frontend OpenAPI: Defines the API exposed by the generated BFF to the frontend application.
Backend OpenAPI: Defines the backend API consumed by the generated BFF.

Example:

java -jar onecx-bff-generator.jar create-bff \
  --name onecx-product-bff \
  --group org.tkit.onecx \
  --package org.tkit.onecx.product.bff \
  --frontend-api ./openapi/product-frontend.yaml \
  --backend-api ./openapi/product-backend.yaml

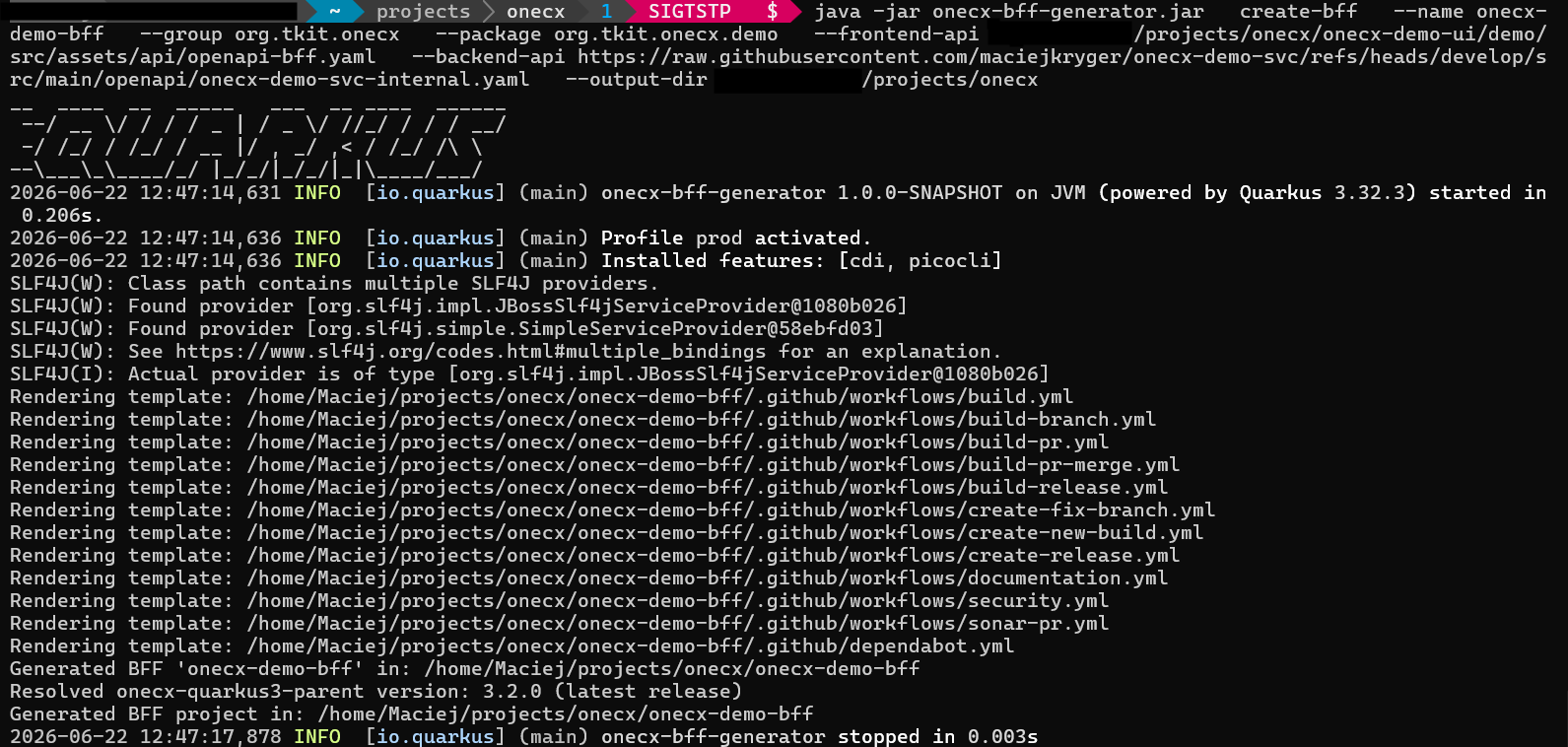

Figure 8. Excerpt of the generation output without autobuild

If the backend OpenAPI is available as URL, it can also be provided directly:

java -jar onecx-bff-generator.jar create-bff \
  --name onecx-product-bff \
  --group org.tkit.onecx \
  --package org.tkit.onecx.product.bff \
  --frontend-api ./openapi/product-frontend.yaml \
  --backend-api https://example.org/openapi/product-backend.yaml

copy-paste URL example:

export ONECX_HOME="${ONECX_HOME:-$HOME/projects/onecx}"

curl -L -o onecx-bff-generator.jar \
https://github.com/onecx/onecx-bff-generator/releases/download/v0.1.1/onecx-bff-generator.jar

java -jar onecx-bff-generator.jar create-bff \
--name onecx-demo-bff \
--group org.tkit.onecx \
--package org.tkit.onecx.demo \
--frontend-api "ONECX_HOME/onecx-demo-ui/demo/src/assets/api/openapi-bff.yaml" \
--backend-api https://raw.githubusercontent.com/maciejkryger/onecx-demo-svc/refs/heads/main/src/main/openapi/onecx-demo-svc-internal.yaml \
--output-dir "ONECX_HOME" \
--autobuild

Build the Generated BFF

If the BFF was generated without --autobuild, build the project manually:

cd onecx-demo-bff
mvn clean package

If you want to skip tests during a local build, use:

mvn clean package -DskipTests

Generated Project

The generated project contains:

Maven project configuration
Quarkus application configuration
REST controller skeletons
mapper classes
generated test scaffolding
OpenAPI integration setup
Docker files
Helm chart files
GitHub Actions workflow files
Test for jacoco coverage at least 80%

Generated controller and mapper classes are a starting point. You should review and adapt the generated API mappings before using the BFF in a real environment.

Next step may be to review and customize generated API mappings and controller implementation.
